Multi-Point Discharge Z-Type Elevator
Our company manufactures single-crystal rock sugar machines with capacities ranging from 1.2 to 3.5 tons. This machine features automatic heating via coil tubes, automatic vacuuming, and automatic sugar syrup supply. One operator can handle 16 to 20 single-crystal machines simultaneously. Approximately 30 hours are required to produce one batch of sugar. The resulting single-crystal rock sugar granules are uniform and crystal-clear, significantly enhancing the efficiency and economic benefits of sugar mills.
Keywords:
Email:
Product description:
The Z-type elevator is low-power, energy-efficient, and environmentally friendly, and can achieve multi-point feeding and discharging.
Suitable for the conveying of granular and powdered materials in industries such as grain, seeds, food, chemicals, and pharmaceuticals.

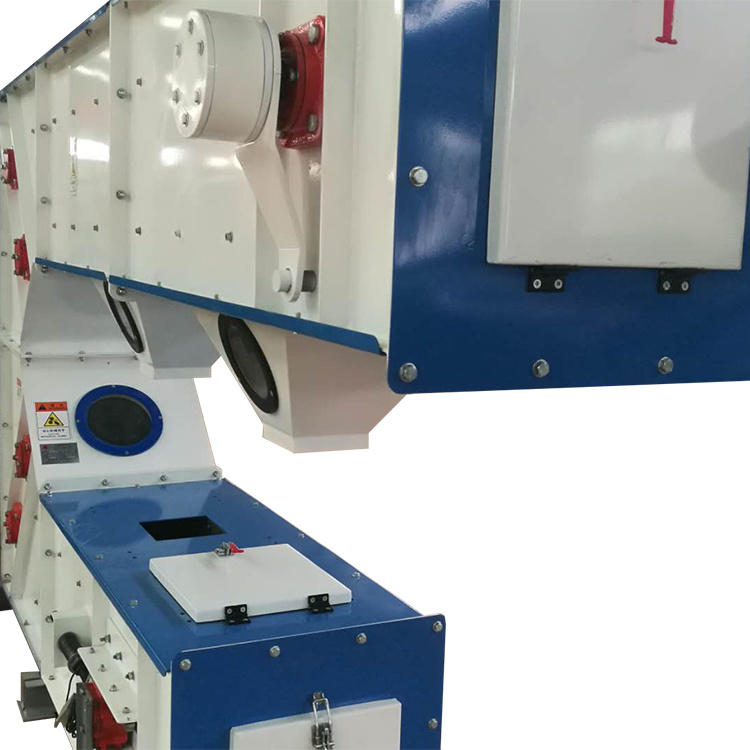

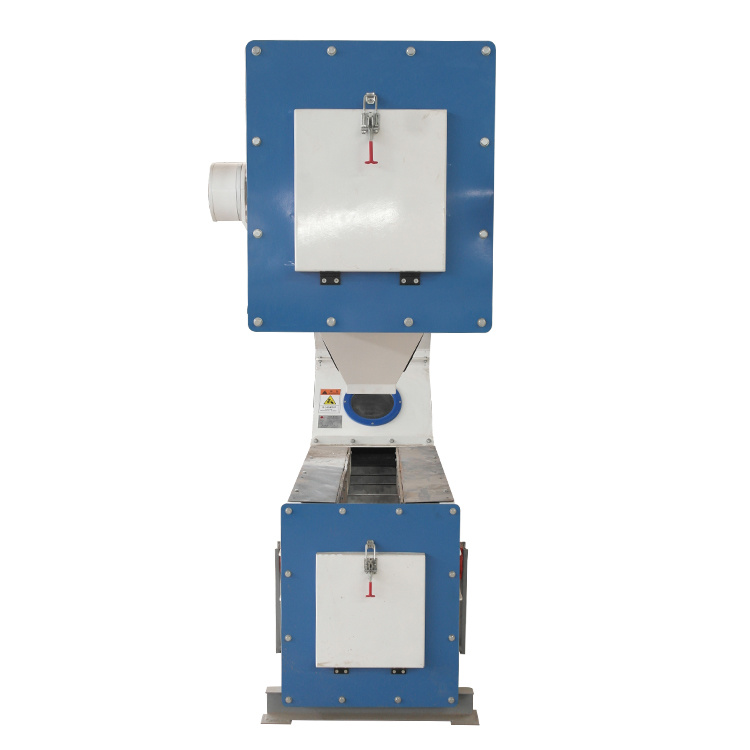

The new rotary-bucket elevator, except during discharge when the discharge mechanism rotates the buckets to empty their contents, keeps the bucket inlet oriented upward throughout the entire conveying cycle—whether conveying horizontally or vertically—thanks to the natural downward pull of gravity. The buckets are driven by a chain within a sealed casing to convey the material. It is capable of combined horizontal–vertical–horizontal conveying. Material can be fed at a single point or multiple points, and discharged at one or more points via the discharge mechanism. The design is fully enclosed, with no material leakage and no environmental contamination. It is suitable for conveying a wide range of powdered and granular materials. Key advantages include flexible configuration, low operating resistance resulting in reduced drive power consumption, virtually zero breakage of the conveyed material, and PLC control with variable-frequency speed regulation, enabling intelligent, unattended operation and substantial labor savings.
This new type of elevator is primarily available in Z-shaped, C-shaped, hybrid, and horizontal configurations. Despite their different structural forms, they share the same operating principle and characteristics: all are designed for horizontal–vertical–horizontal conveying of powdery, granular, and small lump materials. They feature a compact structure, a small footprint, a large lifting height, excellent sealing performance that prevents material breakage, low drive power for energy efficiency and environmental protection, and ease of maintenance.
Explosion-proof design for the entire machine, with a built-in forced ventilation system, an automatic hopper cleaning system, and an automatic lubrication system.

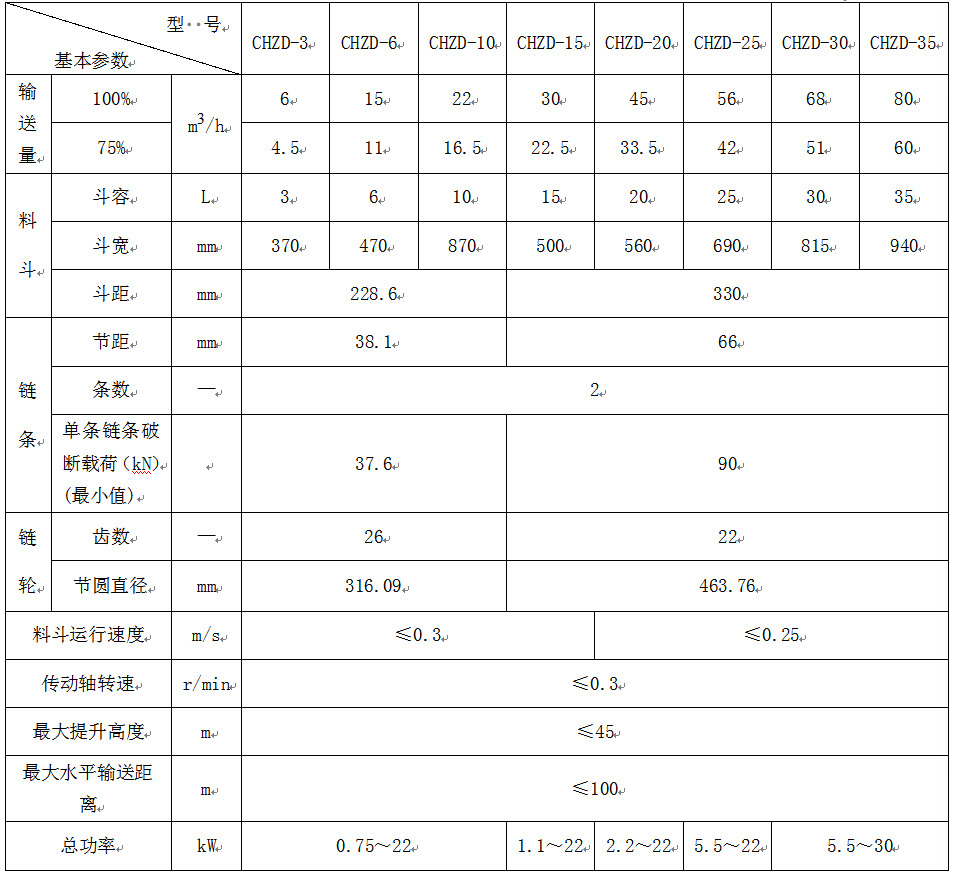

The unit has a flow rate of 3–100 m³/h.
Bucket elevator (Z-type elevator, C-type elevator): single-unit conveying distance:
The horizontal reach can be up to 100 meters, and the vertical reach can be up to 60 meters, as specified by the user.
