Type C Elevator
Our company manufactures single-crystal rock sugar machines with capacities ranging from 1.2 to 3.5 tons. This machine features automatic heating via coil tubes, automatic vacuuming, and automatic sugar syrup supply. One operator can handle 16 to 20 single-crystal machines simultaneously. Approximately 30 hours are required to produce one batch of sugar. The resulting single-crystal rock sugar granules are uniform and crystal-clear, significantly enhancing the efficiency and economic benefits of sugar mills.
Keywords:
Email:
Product description:
Hengshui Changhong Bucket Elevator (CHZD Series)
— Gentle conveying · Flexible layout · Multi-point feeding and discharging**
Hengshui Changhong Mining Machinery Co., Ltd. has been deeply engaged in the bulk-material conveying equipment sector for many years and has since been recognized as a National High-Tech Enterprise, a Provincial Specialized, Refined, Distinctive, and Innovative Enterprise, and an Innovative Small and Medium-Sized Enterprise. The company holds 36 patents, 5 registered trademarks, and 4 software copyrights, with its products widely used across multiple industries, including food, chemicals, building materials, environmental protection, metallurgy, and refractories. Its CHZD series Z-type elevators have successively served major enterprises such as Anhui Conch Group and Baowu Environmental Technology, while the company continues to expand its presence in both domestic and international markets.
The Hengshui Changhong Rotary Bucket Conveyor (hereinafter referred to as the “Rotary Bucket”) employs two specially formulated, high-performance chains as its traction elements. The buckets are securely mounted on both sides of the chains in a continuous arrangement and operate via gravity-fed loading combined with low-speed, automatic tipping for discharge. Except during the discharge phase—when a dedicated discharging mechanism rotates the buckets to empty their contents—the buckets remain in their normal operating positions throughout all other phases (horizontal and vertical sections), with their inlet openings consistently oriented upward under the influence of gravity. This design effectively prevents material from spilling or leaking during conveyance. The equipment is also known by various alternative names, including rotary bucket elevator, Z-type elevator, Z-type feeder, Z-type bucket elevator, C-type elevator, C-type feeder, C-type bucket elevator, S-type elevator, T-type elevator, non-crushing elevator, zero-crushing elevator, multi-point feeding elevator, multi-point discharging elevator, elevator配套 for packaging machines, and elevator配套 for color-sorting machines. It can handle materials with a maximum temperature of up to 600°C.
I. Core Configuration**
Hopper: To meet the diverse needs of customers across different industries, hopper materials can be flexibly selected based on material characteristics, including nylon, ABS, PP, stainless steel 304, stainless steel 316L, stainless steel 310, carbon steel, and more.
Chain: High-quality, custom-made domestic chains are used. The conveyor chain employed in this machine is a large-pitch roller conveyor chain, which effectively reduces frictional losses during operation, extends the service life of the chain, and lowers maintenance and replacement costs.
Enclosure: The entire unit can be configured with either carbon steel cold-rolled sheet with electrostatic powder coating or a stainless steel structure, meeting the corrosion-resistant and cleanability requirements of various operating environments.
II. Applicable Industries
This machine is suitable for conveying powdery, granular, and small-to-medium-sized bulk materials, and is widely used in industries such as food processing, agricultural and sideline product processing, chemical and pharmaceutical manufacturing, activated carbon production, construction and energy, environmental protection and treatment, refractory materials, and the military. In automated production lines, the equipment can adjust its conveying speed according to the material throughput and is equipped with a PLC control system to meet automated feeding requirements.
III. Conveying Method

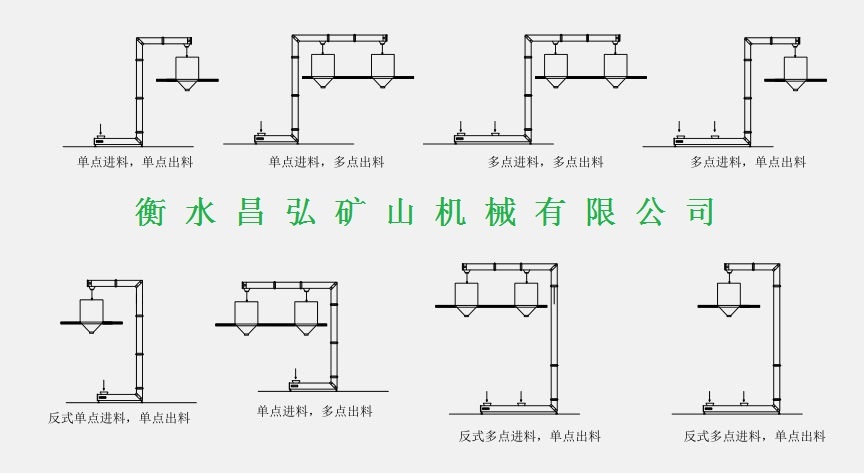

The bucket conveyor transports materials within a sealed housing, using buckets suspended from a chain to achieve horizontal, vertical, and combined horizontal–vertical conveying. Its modular design supports a variety of configurations, including Z-shaped, C-shaped, E-shaped, T-shaped, and straight-line layouts, and can be equipped with multi-point feeding and multi-point discharging. The entire system is fully sealed, ensuring pollution-free and leak-free operation, with flexible layout options that enable three-dimensional vertical and horizontal conveying in compact spaces. The equipment is easy to install and allows for convenient post-installation layout adjustments.
IV. Core Advantages of the Z-Type Elevator
As the flagship product of this series, the Z-type elevator derives its name from the “Z”-shaped material conveying path—horizontal feeding, vertical lifting, and horizontal discharge. Its key advantages are as follows:
1. Gentle conveying with high material integrity
The Z-type elevator employs in-feed feeding and induced discharge, minimizing compression and impact on the material during conveyance. This results in low running resistance and a low material breakage rate, making it ideal for handling materials that require gentle treatment, such as food products, seeds, and chemical raw materials.
2. Low drive power, energy-efficient operation
A high-capacity hopper-based, compact arrangement is employed, eliminating backflow and digging during material lifting, reducing reactive power consumption, significantly lowering drive power, and delivering notable energy-saving benefits.
3. Wide upgrade scope and strong material adaptability
This equipment has minimal requirements for the type and characteristics of the material; in addition to common powdery and small granular materials, it can also convey materials with high abrasiveness. It features excellent sealing performance, effectively controlling dust emissions.
4. Compact structure, saving floor space
The equipment employs a 90° vertical lifting mechanism to achieve three-dimensional conveying, while its compact footprint significantly reduces the space required, making it particularly well-suited for applications with limited plant floor space.
5. Multi-point Feeding and Multi-point Discharging
Multiple feed and discharge ports can be configured to meet specific process requirements, enabling a single unit to handle the feeding and discharging needs of the entire production line—eliminating the need for multiple standalone units.
6. Outstanding high-temperature resistance
This product series can convey materials at temperatures up to 600°C, offering distinct advantages in industries such as metallurgy, refractory materials, and high-temperature material recovery.
7. PLC Control and Variable-Frequency Speed Regulation
This machine can be optionally equipped with a PLC control system and a variable-frequency drive speed-control system, enabling intelligent unattended operation, reducing labor requirements, and meeting the speed-control needs of different production rhythms.
8. High operational reliability
The inflow feeding design minimizes compression and impact between the material and the hopper, effectively reducing mechanical wear, ensuring smooth operation of the entire machine, and lowering the failure rate.
V. Leak-Free Split Hopper
The equipment feeds material in the horizontal section, utilizing a dedicated feeding device to ensure stable feed delivery and leak-free operation.
VI. Easy Installation
Changhong’s bucket elevators are shipped in a modular configuration, enabling customers to choose self-installation with on-site verification of installation quality by Changhong’s technical staff, or to entrust Changhong with the complete installation and commissioning of the entire system.
VII. Convenient Maintenance
This product is equipped with high-quality components to ensure stable operation. All modules feature a detachable connection design for convenient routine maintenance. A drawer-type cleaning unit is installed in the lower horizontal section of the equipment, facilitating internal cleaning; alternatively, an automatic self-cleaning mode is available, eliminating the need for manual cleaning, as the equipment comes with a built-in control program. All bearings are externally mounted for easy inspection and maintenance.

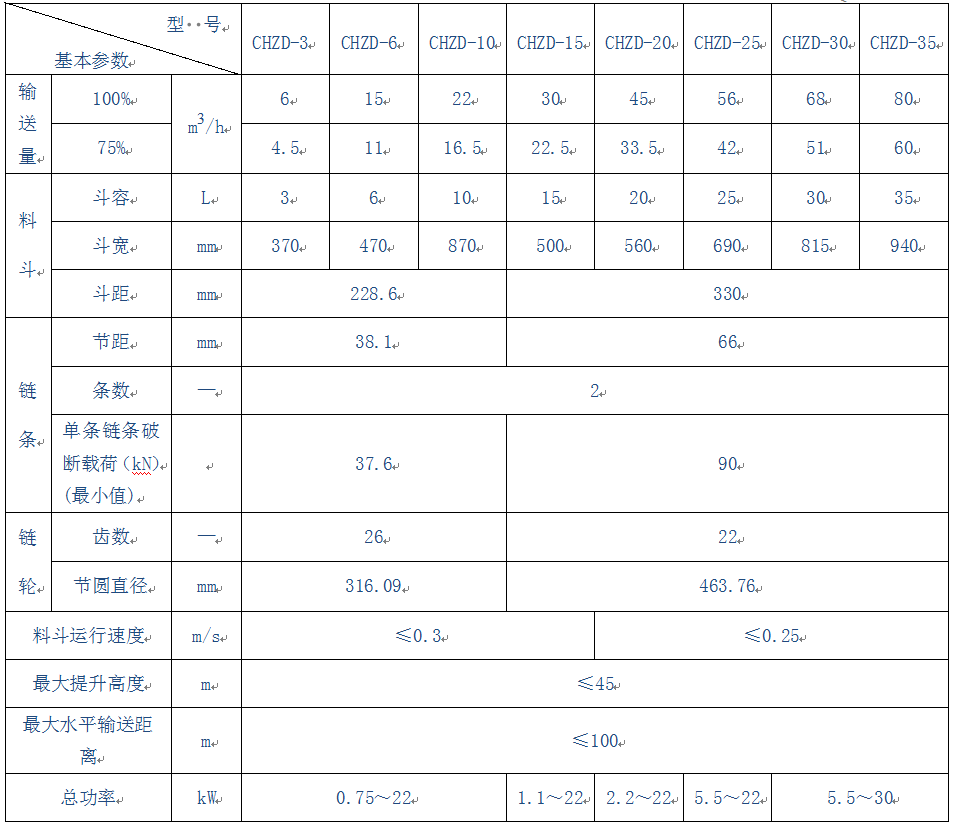

VIII. Performance Parameters
This unit offers a capacity range of 3 to 160 m³/h. A single unit can convey material horizontally over distances of up to 100 meters and lift it vertically to heights of up to 50 meters, with customization available to meet specific customer requirements. The equipment is equipped with a comprehensive explosion-proof system, a built-in forced ventilation system, an automatic hopper cleaning system, and an automatic lubrication system, further ensuring compliance with safety and maintenance standards across various industries.

Hengshui Changhong Mining Machinery Co., Ltd.**
Address: Industrial Zone, Matou Town, Fucheng County, Hengshui City, Hebei Province
Official website: www.changhongkuangji.com
Phone: 15832856785
Please feel free to call us for a consultation. Changhong’s expert team will provide a customized selection solution tailored to your specific operating conditions.
