Hengshui Changhong Bucket Elevator ( CHZD Series)
—— Gentle conveyance · Flexible layout · Multi-point feeding and multi-point discharging **
Hengshui Changhong Mining Machinery Co., Ltd. has been deeply engaged in the bulk-material conveying equipment sector for many years and has now been recognized as a National High-Tech Enterprise, a Provincial Specialized, Refined, Distinctive, and Innovative Enterprise, and an Innovative Small and Medium-Sized Enterprise, possessing 40 Many a patent, 2 a registered trademark and 4 software copyrights, with products widely used in numerous industries such as food, chemicals, building materials, environmental protection, metallurgy, and refractory materials. The company’s portfolio includes CHZD Series Z The type of hoist has successively served major enterprises such as Anhui Conch Group and Baowu Environmental Protection Technology, while continuously expanding its presence in both domestic and international markets.
Hengshui Changhong Z type The bucket conveyor (commonly referred to as a “rotating-bucket conveyor”) employs two specially designed, high-strength chains as the traction elements. The buckets are securely mounted on both sides of the chains in a continuous, staggered arrangement and operate via gravity-fed loading and low-speed, automatic overturning for discharge. Except during the discharge phase—when a discharge mechanism rotates the buckets to empty their contents—the buckets remain in their normal operating positions throughout all other phases (horizontal and vertical sections), with their inlet openings consistently oriented upward under the influence of gravity. This design effectively prevents material from spilling or leaking during conveyance. The equipment is also known as a rotating-bucket elevator. Z Type elevator, Z Type bucket elevator, C Type elevator
The maximum material temperature that can be conveyed is up to 86 0°C 。
I. Core Configuration **
Hopper: To meet the differentiated needs of customers across various industries, hopper materials can be flexibly selected based on material characteristics, including nylon, ABS 、 PP , stainless steel 304 , stainless steel 316L , stainless steel 310 , carbon steel, etc.
Chain: High-quality, custom-made domestic chains are used. The conveyor chain in this machine is a large-pitch roller conveyor chain, which effectively reduces frictional losses during operation, extends the service life of the chain, and lowers maintenance and replacement costs.
Chassis: The entire unit can be configured with either carbon steel cold-rolled sheet with electrostatic powder coating or a stainless steel structure, ensuring corrosion resistance and ease of cleaning to meet the requirements of various operating environments.
II. Applicable Industries
This machine is suitable for conveying powdered, granular, and small-to-medium-sized bulk materials, and is widely used in industries such as food processing, agricultural and sideline product processing, chemical and pharmaceutical manufacturing, activated carbon production, construction and energy, environmental protection and treatment, refractory materials, and the military industry. In automated production lines, the equipment can adjust its conveying speed according to the material throughput and is equipped with Programmable Logic Controller Control system that meets automated feeding requirements.
III. Conveying Type
The bucket conveyor transports materials within a closed housing, using buckets suspended from a chain to achieve horizontal, vertical, and combined horizontal–vertical material conveyance. Its modular design enables Z Type, C Type, E Type, T It supports various configurations, including U-shaped and straight-line layouts, and can be equipped with multi-point feeding and multi-point discharging. The entire machine is fully sealed, ensuring pollution-free and leak-free operation. Its flexible layout allows for both vertical and horizontal three-dimensional conveying within a compact footprint, while the equipment is easy to install and adapt to future layout changes.
IV. Z Core Advantages of the Type Elevator
As the flagship product of this series, Z The type of elevator, due to its material conveying path, presents “Z” Character shape —— Horizontal feeding → Vertical Lifting → It is named for its horizontal discharge. Its advantages are mainly reflected in the following aspects:
1. Gentle conveying with high material integrity
Z This type of elevator employs in-feed feeding and induced discharge, minimizing compression and impact on the material during conveyance. It features low running resistance and a low material breakage rate, making it ideal for handling materials that require gentle treatment, such as food products, seeds, and chemical raw materials.
2. Low drive power, energy-efficient operation
A high-capacity hopper-based, compact arrangement is employed, eliminating backflow and digging during material lifting, reducing reactive power consumption, significantly lowering drive power, and delivering substantial energy savings.
3. Wide range of applications and strong material adaptability.
This equipment has minimal requirements for the type and characteristics of the material; in addition to common powdery and small granular materials, it can also convey materials with high abrasiveness. It features excellent sealing performance, effectively controlling dust emissions.
4. Compact structure, saving floor space.
The equipment is 90° The vertical lifting configuration enables three-dimensional material handling, while the compact machine design significantly reduces the equipment’s footprint, making it particularly well-suited for applications with limited plant floor space.
5. Multiple Feeding and Multiple Discharging
Multiple feed and discharge ports can be configured to meet specific process requirements, enabling a single unit to handle the feeding and discharging needs of the entire production line—eliminating the need for multiple standalone units.
6. Outstanding high-temperature resistance
The material temperature that this product series can convey can reach 600°C It offers distinct advantages in industries such as metallurgy, refractory materials, and high-temperature material recovery.
7. PLC Control and Variable-Frequency Speed Regulation
This unit is optionally available. Programmable Logic Controller The control and variable-frequency speed-regulation system enables intelligent, unattended operation, reduces labor requirements, and simultaneously meets the speed-adjustment needs of different production rhythms.
8. High operational reliability
The inflow feeding design minimizes compression and impact between the material and the hopper, effectively reducing mechanical wear, ensuring smooth operation of the entire machine, and lowering the failure rate.
V. Leak-Free Split Hopper
The equipment feeds material in the horizontal section, utilizing a dedicated feeding device to ensure stable feed delivery and leak-free operation.
VI. Easy Installation
Changhong’s bucket elevators are shipped in a modular configuration, enabling customers to choose self-installation with on-site verification of installation quality by Changhong’s technical staff, or to entrust Changhong with the complete installation and commissioning of the entire system.
VII. Convenient Maintenance
This product is equipped with high-quality components to ensure stable operation. All modules feature a detachable connection design for convenient routine maintenance. The horizontal section at the bottom of the equipment is fitted with a drawer-style cleaning unit, making internal cleaning easy; alternatively, an automatic self-cleaning mode is available, eliminating the need for manual cleaning and incorporating a built-in control program. All bearings are externally mounted for easy inspection and maintenance.
VIII. Performance Parameters

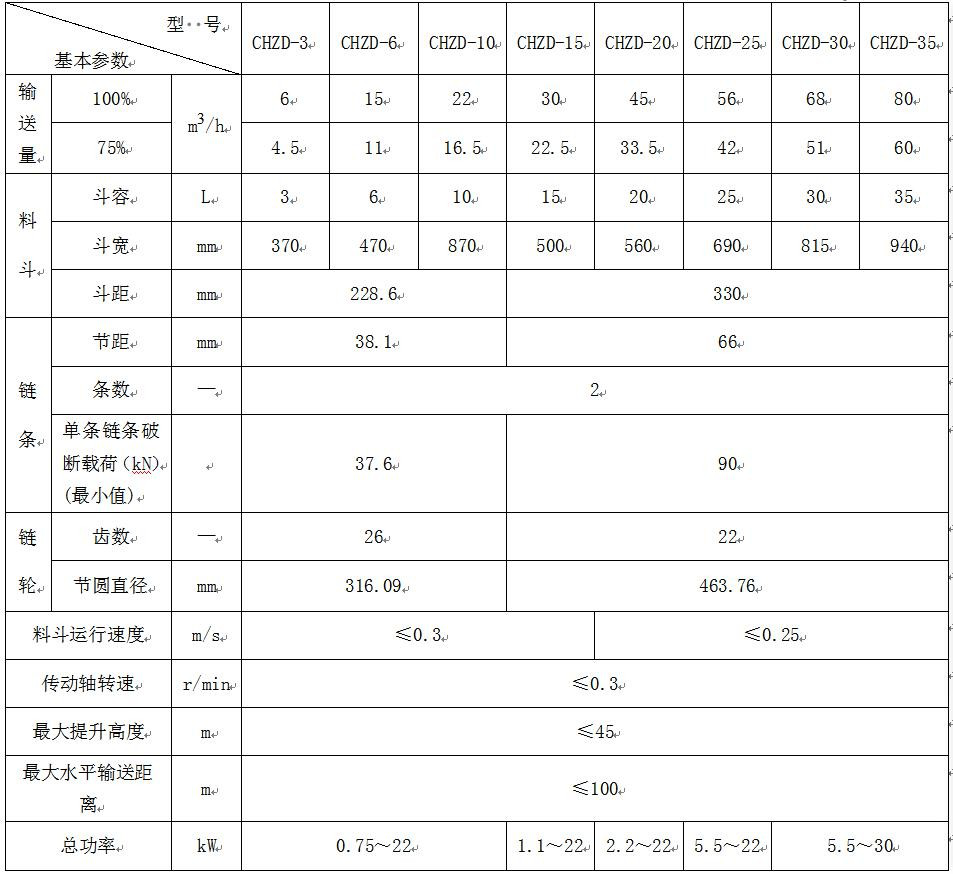

The lifting capacity range of this machine is 3–160 m³/h . The horizontal conveying distance for a single unit can reach 100 Rice, with a vertical lifting height of up to 50 The equipment can be customized to meet users’ specific requirements. It is equipped with a full-machine explosion-proof system, a built-in forced ventilation system, an automatic hopper cleaning system, and an automatic lubrication system, further addressing the safety and maintenance needs of various industries.
